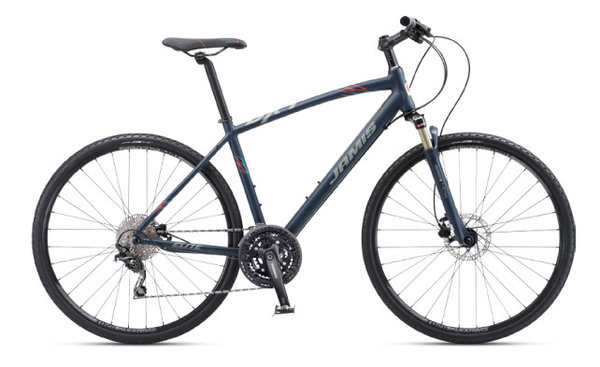

Jamis DXT Elite

Jamis DXT Elite
$879.00
Color:
Flat Ink
Please select options
Sorry, this item is currently not available. Call for future availability.

Details

The dual-sport DXT’s are pumped-up, go-anywhere/do-anything versions of our Allegro fitness bikes. With more gearing
range to take on steeper hills and tougher terrain. Wider tires with a trail-capable tread for access to more riding areas,
both paved and packed. And disc brakes and suspension forks for real off-road exploration and off-pavement adventure

Specs

Frame Triple-butted 6061 aluminum with hydro-formed top and down tube, 1 1/8” head tube, new designed taper gauge “S” bend stays, seat stays and disc brake mounts, 34.9mm seat tube and fender/rack eyelets
Fork SR/Suntour SF15-NVX HLO, aluminum lowers, coil spring, 28mm stanchions, 1-1/8" steerer, aluminum crown, hydraulic lock out, 75mm travel
Headset Internal cup, threadless, 1 1/8”
Rims/Wheels Alex TD26 disc specific double wall alloy rims, 32H, Formula sealed bearing disc hubs and 14g stainless steel spokes
Tires Ritchey Comp Speedmax Cross, 700 x 40c
Crankset Shimano FC-T521, 48/36/26T, 170mm (15-17”), 175mm (19-23”)
Bottom Bracket Shimano sealed cartridge BB-ES300, 68 x 126mm
Chain KMC X10
Front Derailleur Shimano Deore RD-M610 SGS rear and Deore FD-T6000 top swing front
Rear Derailleur Shimano Deore RD-M610 SGS rear and Deore FD-T6000 top swing front
Cassette/Rear Cogs Shimano 10-speed, 11-36T
Shifters Shimano Deore RapidFire Plus SL-M610, 30-speed
Handlebars Jamis Riser bar, 6061 double-butted aluminum, 31.8 x 20mm rise x 10° sweep x 600mm
Tape/Grips Anatomic double density kraton grip with gel
Stem Jamis adjustable threadless system (ATS) forged aluminum stem, 10° x 90mm (15-17”), 100mm (19/21") 115mm (23"). ATS shim length 100mm
Brakes Tektro HD-M285 post mount hydraulic disc brakes with 160mm 6-bolt rotors and Tektro levers
Pedals Full alloy platform, toe clip attachable
Saddle Selle Royal Seta M1 with integrated clip system
Seat Post Jamis alloy micro-adjust, 31.6 x 350mm alloy clamp with QR seatpin

* Subject to change without notice.

Part Numbers

Option MPN
Flat Ink / 15" 03-1824 BL
Flat Ink / 17" 03-1825 BL
Flat Ink / 19" 03-1826 BL
Flat Ink / 21" 03-1827 BL
Flat Ink / 23" 03-1828 BL
