Details
The Thread Slopestyle is the ultimate model in the Thread line. With its new X6 tubing dual suspension frame, it features 100mm of front travel with a Manitou Circus Expert fork and 80mm of rear travel without any chain stretch thanks to its central BB shell pivot for a simple, solid and efficient single-speed suspension platform. Light and precise, the Thread Slopestyle features a gravity-proven FSA Gradient cockpit and crankset with a 30-14T gearing ratio, sealed bearing Haro SD Nylon Pedals, Spank Spoon rims, Pivotal MTB saddle and alloy seat-post, and a new Haro oversize sealed rotor for fast bar-spin action. The Thread Slopestyle offers a unique combination with its custom alloy detangler and hydraulic-assisted rear brake with the innovative TRP HY/RD disc caliper for high-performance braking and bar-spinning experience.
- X6 alloy frame w/ 80mm rear travel
- Swing-arm pivot around BB shell for no chain-stretch in rear wheel travel

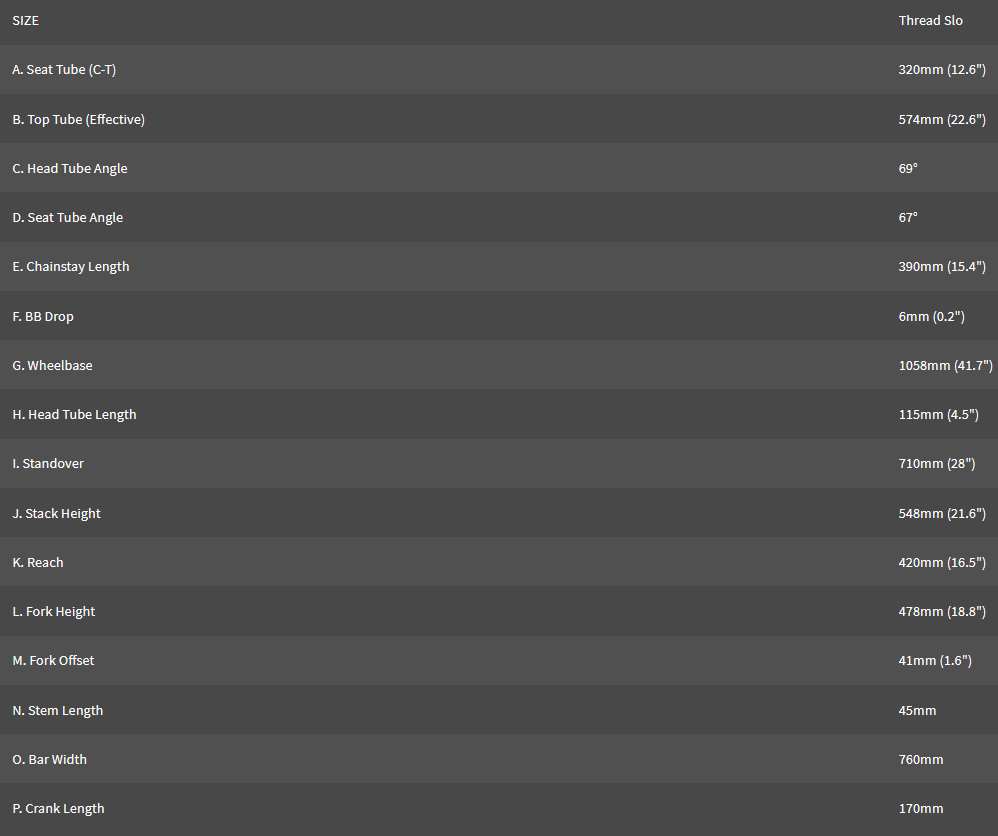

- 22.6" TT w/ 420mm/16.5" reach
- Rockshox RS Deluxe R rear shock
- Custom Haro OS rotor
- Manitou Circus Expert 100mm fork
- FSA Gradient 2-pc crankset, 30T alloy Megatooth chainring
- FSA Gradient 25mm rise bar & stem
- Haro Pivotal saddle and post
- Spank Ind. Spoon alloy DW 32h rims
- Pivit alloy disc cassette hubs w/14T Crmo cog
- Kenda Small Block Eight 2.35"/2.10" tires
- TRP HY/RD-C mechanical/hydraulic rear disc brake
Specs
Frame | Haro Full X6 Alloy Thread Slope, dual suspension frame w/ internal head tube, Euro BB shell & ISCG Mount |
---|---|
Fork | Manitou Circus Expert, 100mm travel, tapered steerer tube w/ 20mm thru-axle |
Headset | FSA # 57, 1-1/8"-1.5" Alloy, w/ top & lower AC Bearings |
Rear Shock | Rockshox RS Deluxe R, 190X45 Debonair, 2 Tokens, MM Tune |
Rims/Wheels | Spank Ind. Spoon alloy doublewall, 32h |
Hubs | Pivit sealed bearing alloy disc, singlespeed cassette w/ 20mm front thru axle, 32h |
Tires | Kenda Small Block 8 26x2.35" Front & 26x2.10" Rear, 60 TPI |
Crankset | FSA Gradient Modular 1X Direct Mount , 170mm |
Chainrings | Megatooth 30T Forged Alloy Chainring |
Bottom Bracket | FSA BB-392-EVO, sealed bearings |
Chain | KMC Z1 HX 1/2 x 1/8" |
Cassette/Rear Cogs | 14T Chromoly Cog |
Handlebars | FSA Gradient Riser, 25mm Rise, 9 Deg. Backsweep, 6 deg. Upsweep; 31.8mm Clamp |
Tape/Grips | Velo Lock On |
Stem | FSA Gradient 1-1/8", 45mm Ext. |
Brake Levers | Odyssey Trigger for Single Gyro upper cable |
Brakes | TRP HY/RD-C 160, Cable / Hydraulic Disc Brake for IS Rear Mount, 160mm disc |
Pedals | Haro SD Nylon w/ sealed bearings |
Saddle | Haro Pivotal w/ hollow bolt |
Seat Post | Alloy 31.6mm, Pivotal |
Accessories & Extras | Haro OS Teflon Bearing Rotor w/ Upper & Lower rotor cables |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
Cool Grey / One Size | 691840105514 | 10551 |
