Details

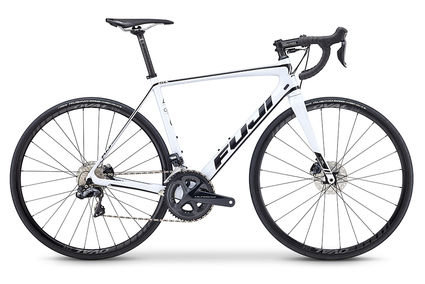

The SL was born out of the quest to create one of the lightest bikes in the world, a machine weight weenies dream of. When every gram matters, ingenuity follows: Through High Compaction molding and the reduction of bonded joints, the SL delivers a frame weight of only 695g without compromising on frame stiffness. For those wanting more control when coming down the mountain we offer the SL in a disc brake version. Whether rim brakes or disc brakes, the SL is in an elite class of superlight bicycles and is elevating Fuji road bikes to a higher level.
C10 ultra high-modulous frame constructed using High Compaction (HC) molding
Fork uses HC molding and RIB technology, a reinforcing rib that runs the length of the fork blades
Injection-molded cable stops and internal cable routing compatible with all drive train systems
Frame features only four bonded joints where most frames use eight or more; less joints equals a lighter and stronger frame
Specs
Frame | C10 high-modulus carbon, integrated head tube w/ 1 1/2" lower, PF30 BB, double water bottle mounts, oversized ETC chainstays, flat-mount disc system, carbon dropout w/ 12mm convertible thru-axle system w/ replaceable hanger |
---|---|
Fork | FC-440 carbon monocoque w/ tapered carbon steerer, 12mm thru-axle dropout w/ flat-mount disc system |
Headset | FSA, 1 1/8" upper - 1 1/2" lower, integrated |
Rims/Wheels | Oval Concepts 524 Disc, centerlock hubs, 100x12mm & 142x12mm thru axles, 700c 24/28H rims |
Tires | Vittoria Zaffiro Pro, 700 x 25c, 60tpi, folding |
Crankset | Shimano Ultegra, 52/36T |
Bottom Bracket | Praxis PF30 conversion bottom bracket |
Chain | KMC X11 w/ MissingLink |
Front Derailleur | Shimano Ultegra, braze-on mount |
Rear Derailleur | Shimano Ultegra |
Cassette/Rear Cogs | Shimano 105, 11-30T |
Shifters | Shimano Ultegra Dual Control Hydraulic, 11-speed |
Handlebars | Oval Concepts 310 Ergo, 6061 alloy, 31.8mm clamp, 133mm drop, 4° sweep |
Tape/Grips | Anti-Slip Silicone |
Stem | Oval Concepts 313, 3D-forged 6061 stem body, +/-7° |
Brake Levers | Shimano Ultegra |
Brakes | Shimano Ultegra Hydraulic, 140/140 Rotors |
Pedals | N/A |
Saddle | Oval Concepts X38 with pressure relief zone, cromo rail |
Seat Post | Oval Concepts 905, carbon & alloy, 27.2mm diameter |
* Subject to change without notice.
Part Numbers
Option | MPN |
---|---|
Pearl White / 46cm | 1091131446 |
Pearl White / 49cm | 1091131449 |
Pearl White / 52cm | 1091131452 |
Pearl White / 54cm | 1091131454 |
Pearl White / 56cm | 1091131456 |
Pearl White / 58cm | 1091131458 |
Pearl White / 61cm | 1091131461 |
